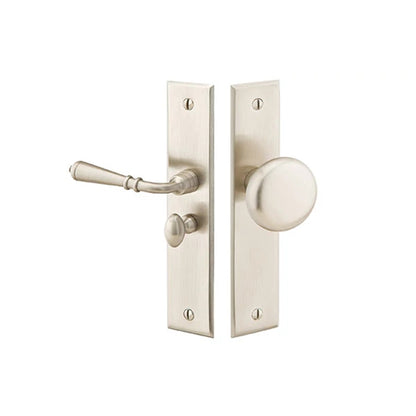

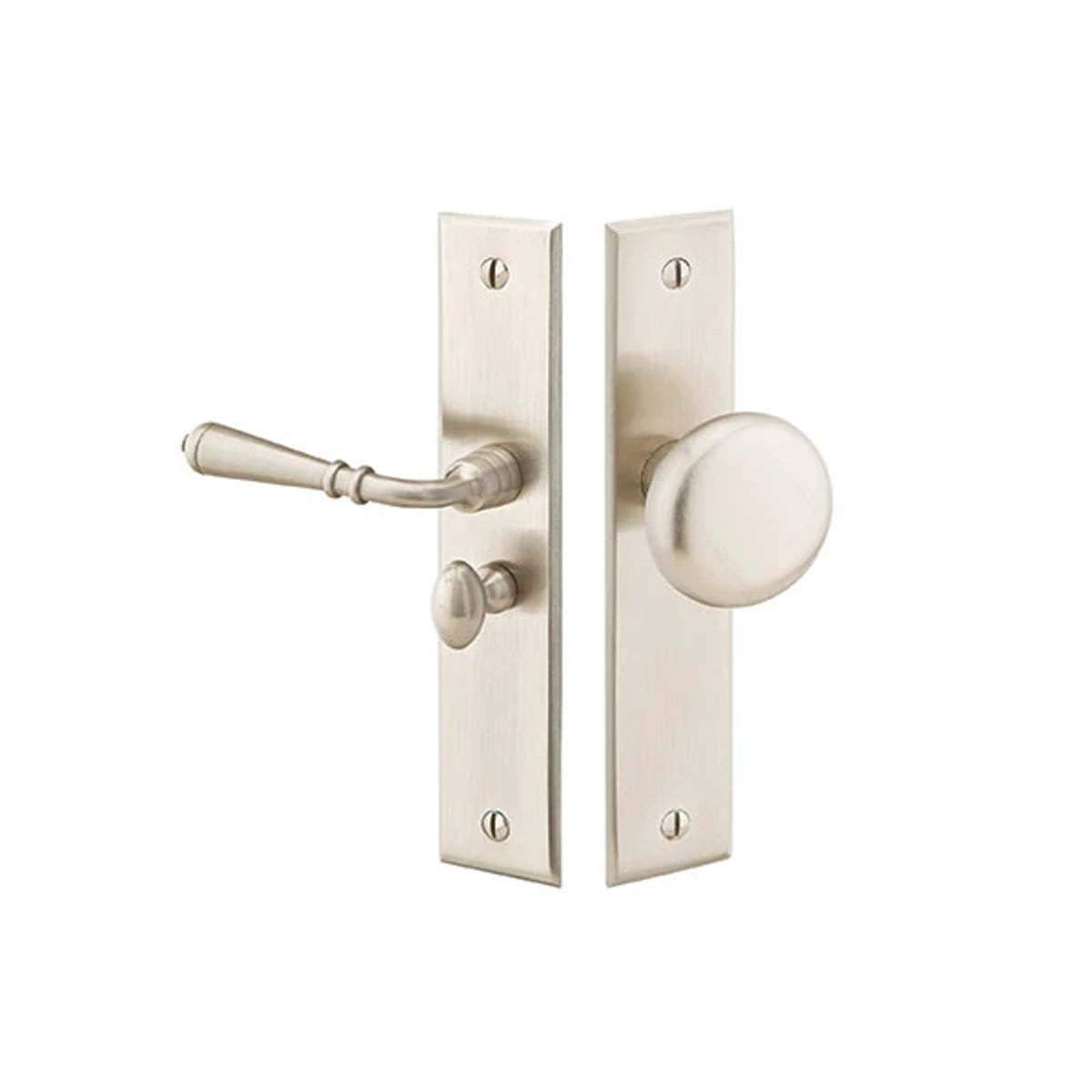

The Emtek 2291 is a complete mortise lockset for wood screen and storm doors. It has 6-inch rectangular-style escutcheon plates, an exterior knob, an interior lever, a mortise lock body, strike plates, screws, and matching trim.
Will this fit my door?

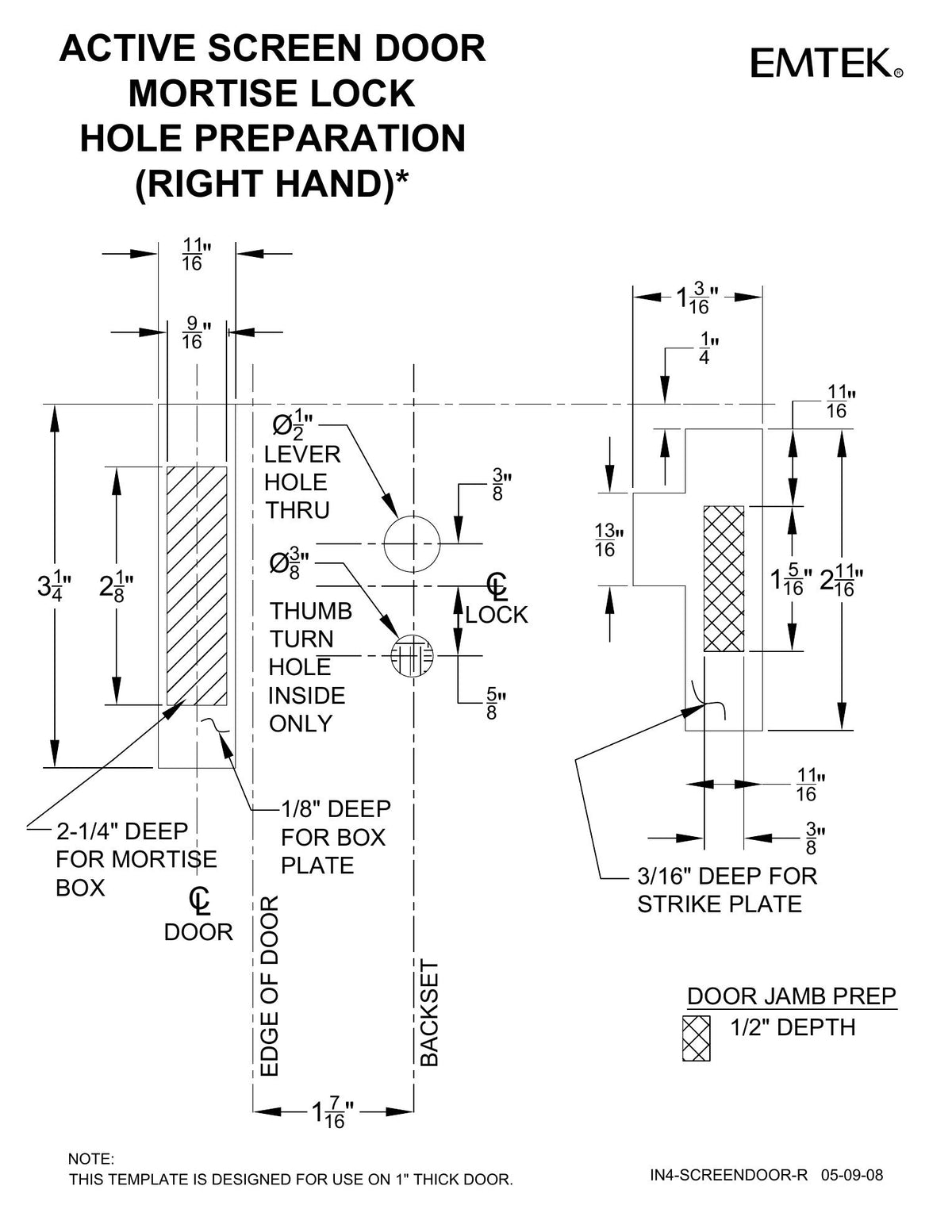

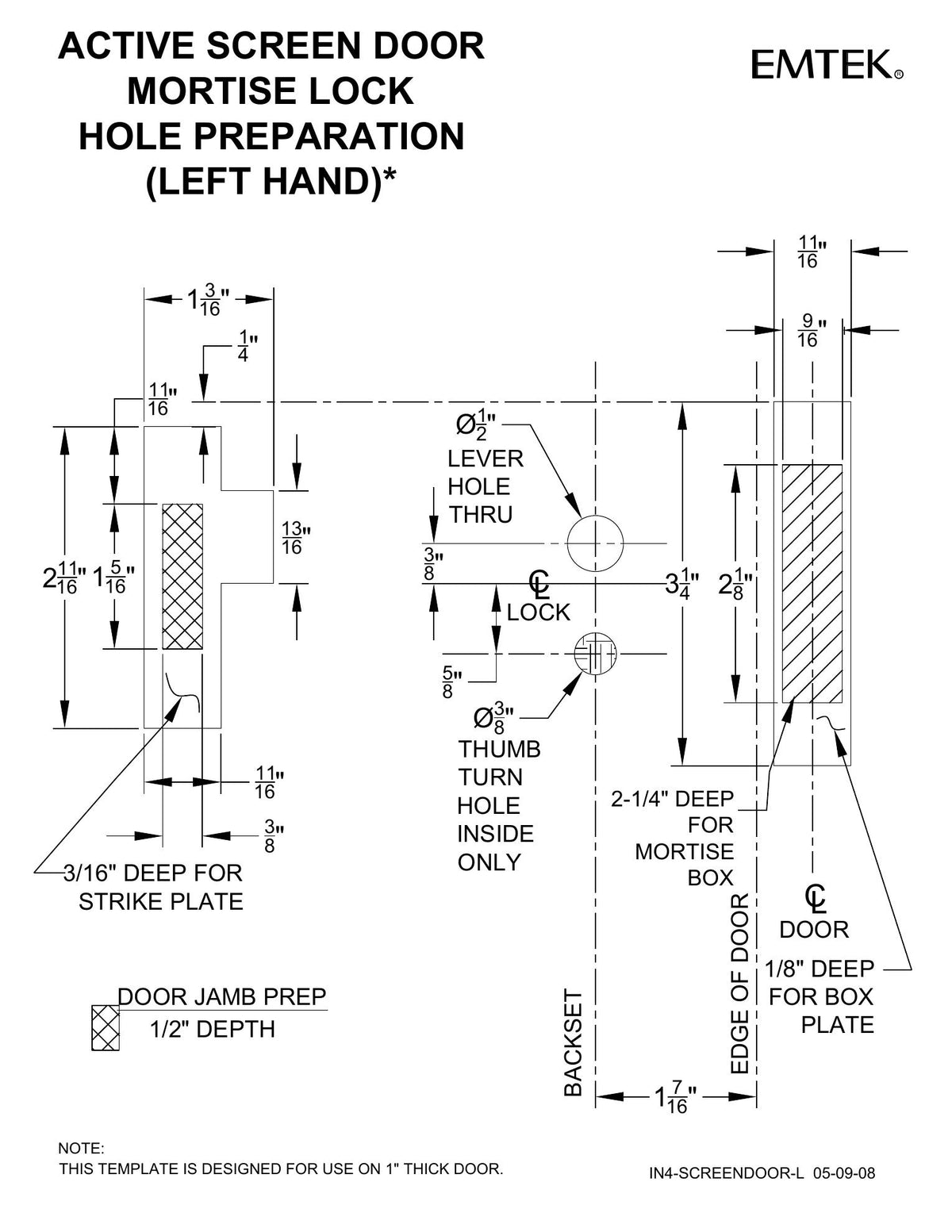

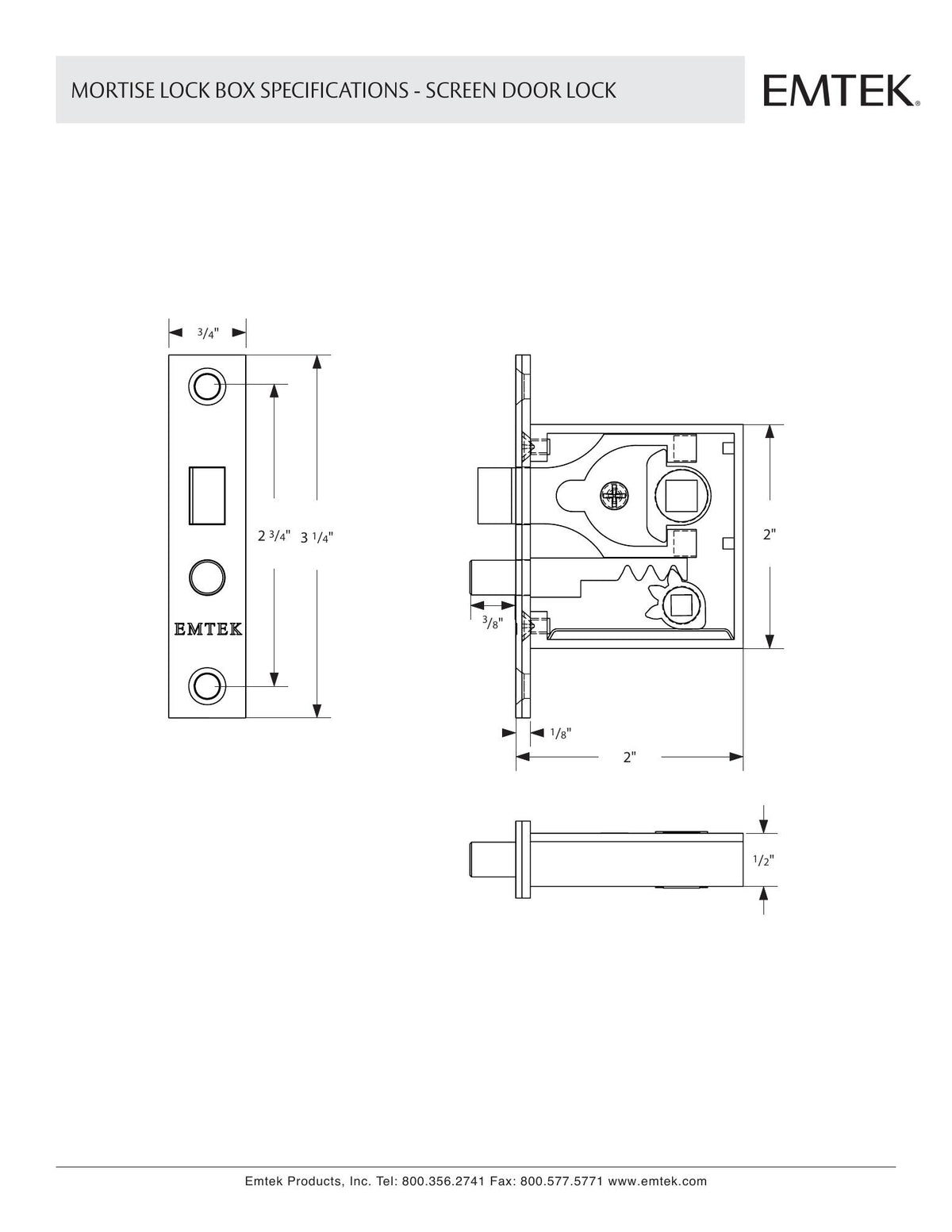

Use the 2291 when the door is 1 to 1-3/4 inches thick and the 1-1/2-inch backset, mortise pocket, plate dimensions, and handed door preparation match the Emtek diagrams. This is not a tubular-latch replacement.
Installation skill required

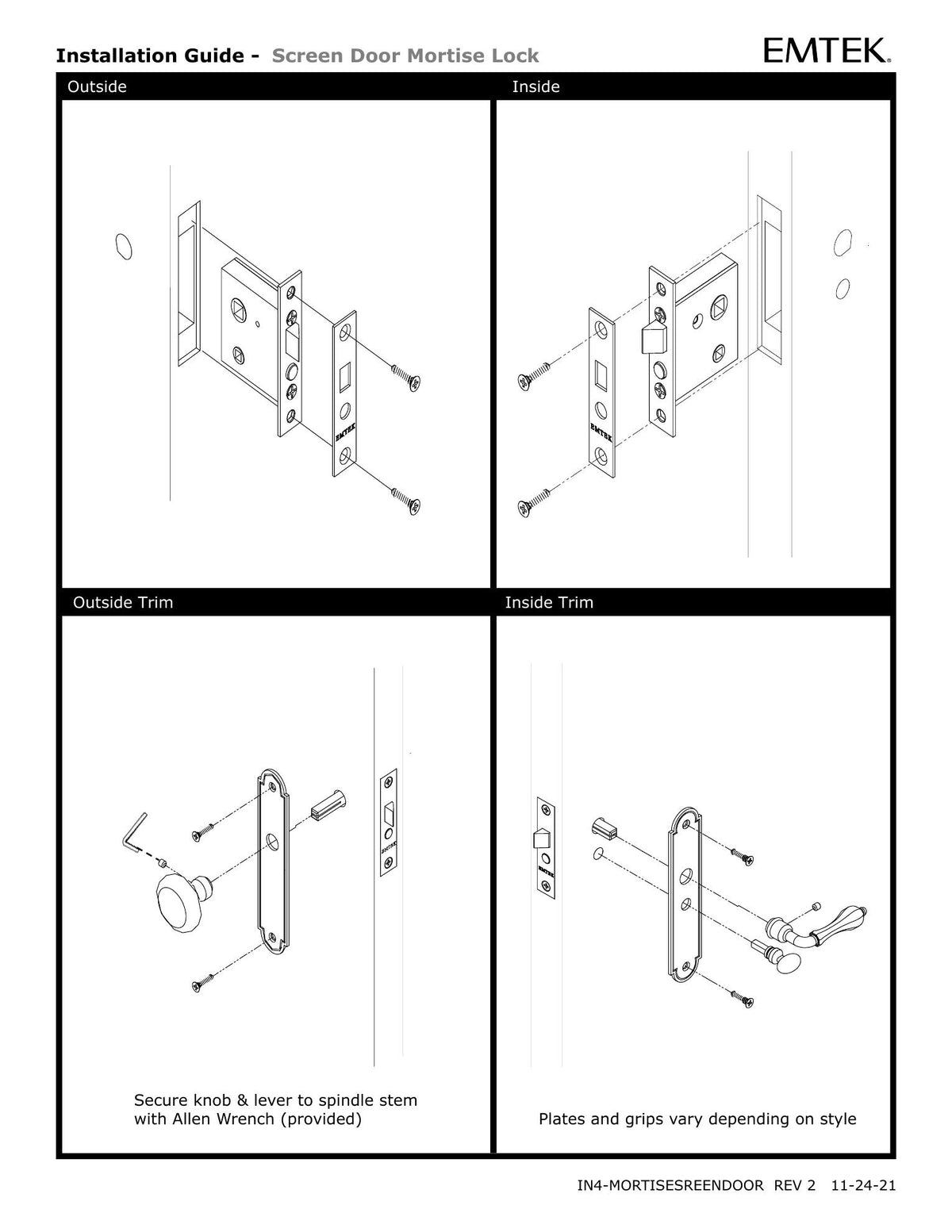

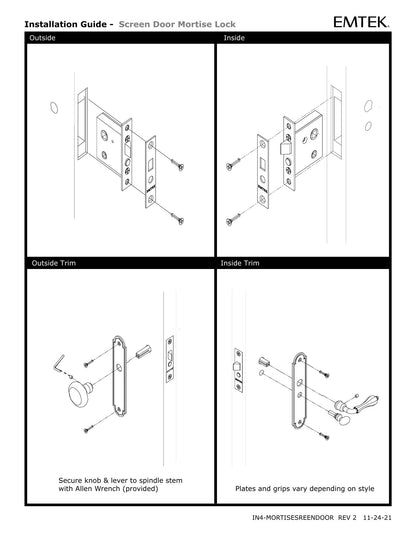

This lock requires accurate drilling and cutting a mortise pocket into the door edge. Installation should be performed by someone with competent woodworking or carpentry skills. Select left-hand or right-hand using Emtek’s handing diagram before ordering.
Specifications
Model: Emtek 2291

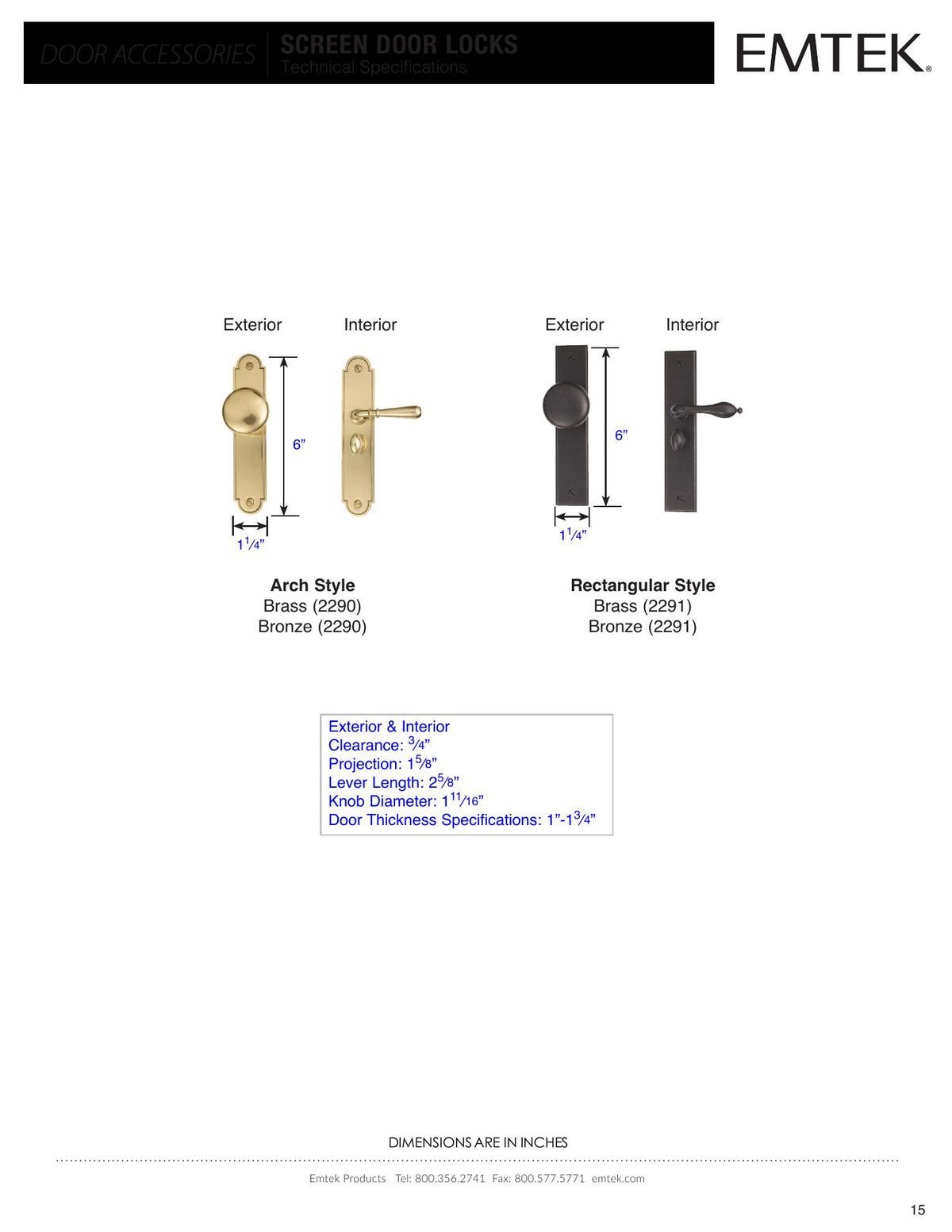

Rectangular-style plates: 1-1/4 inches × 6 inches
Door thickness: 1 inch to 1-3/4 inches
Backset: 1-1/2 inches
Exterior knob and interior lever
Complete set includes lock body, strikes, screws, and matching trim

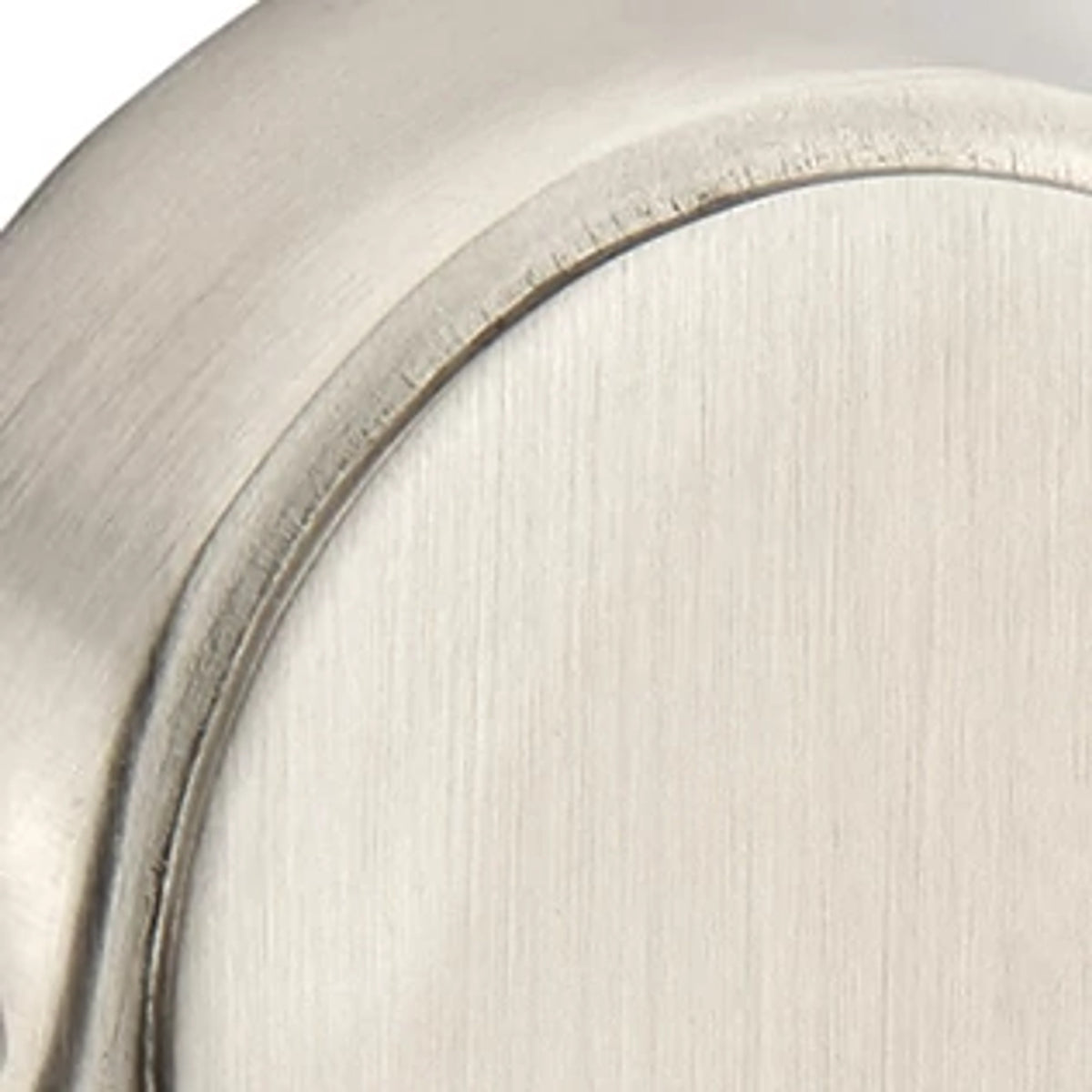

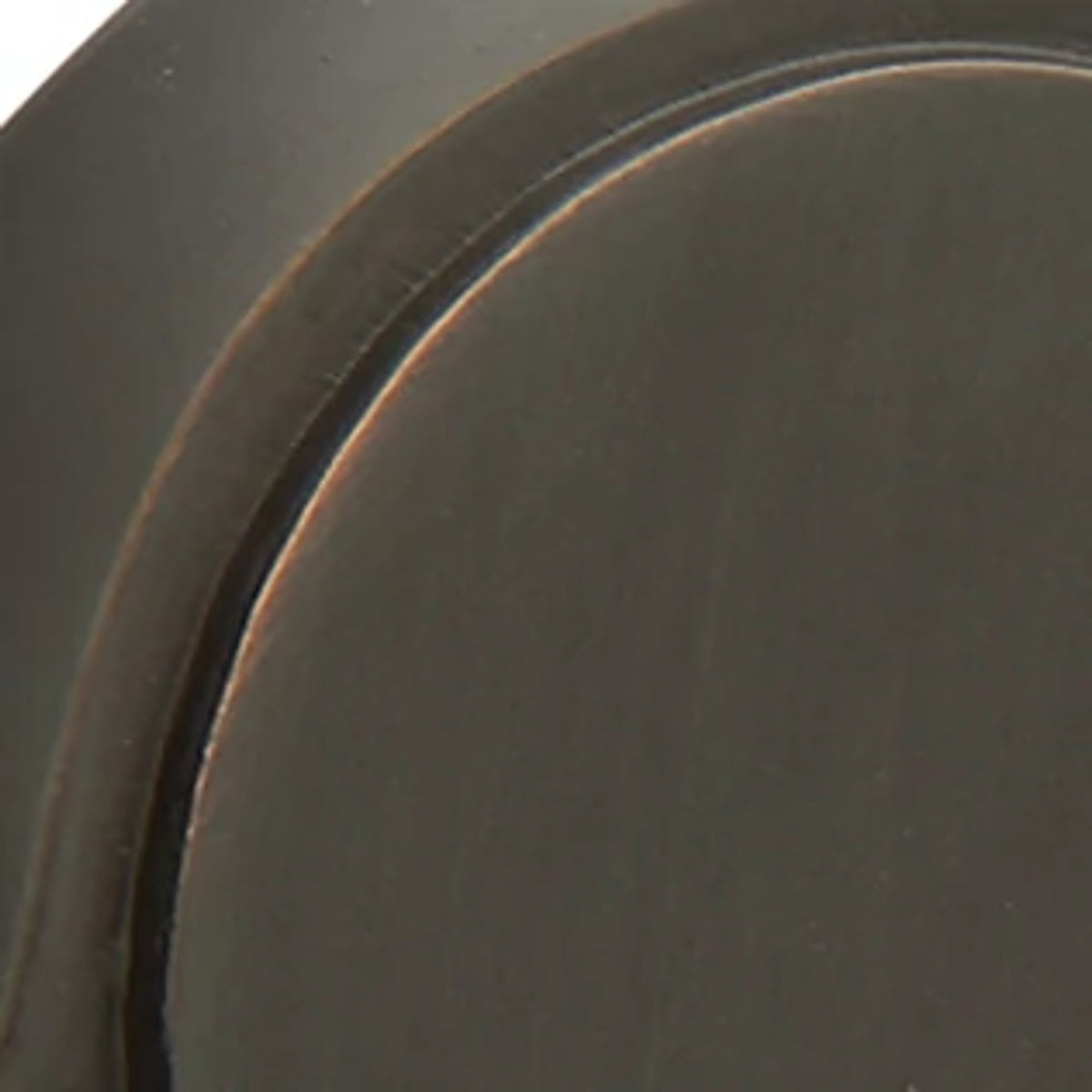

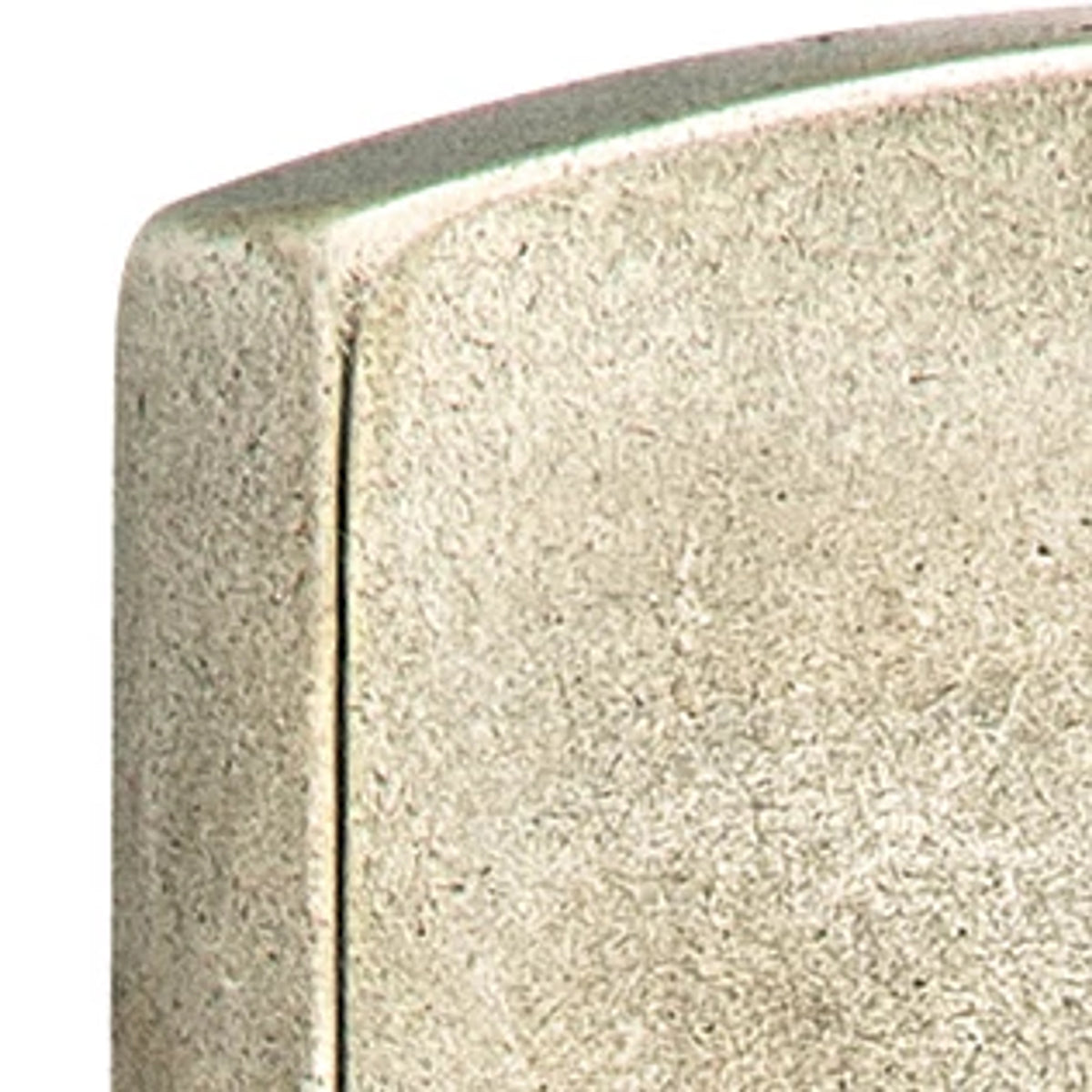

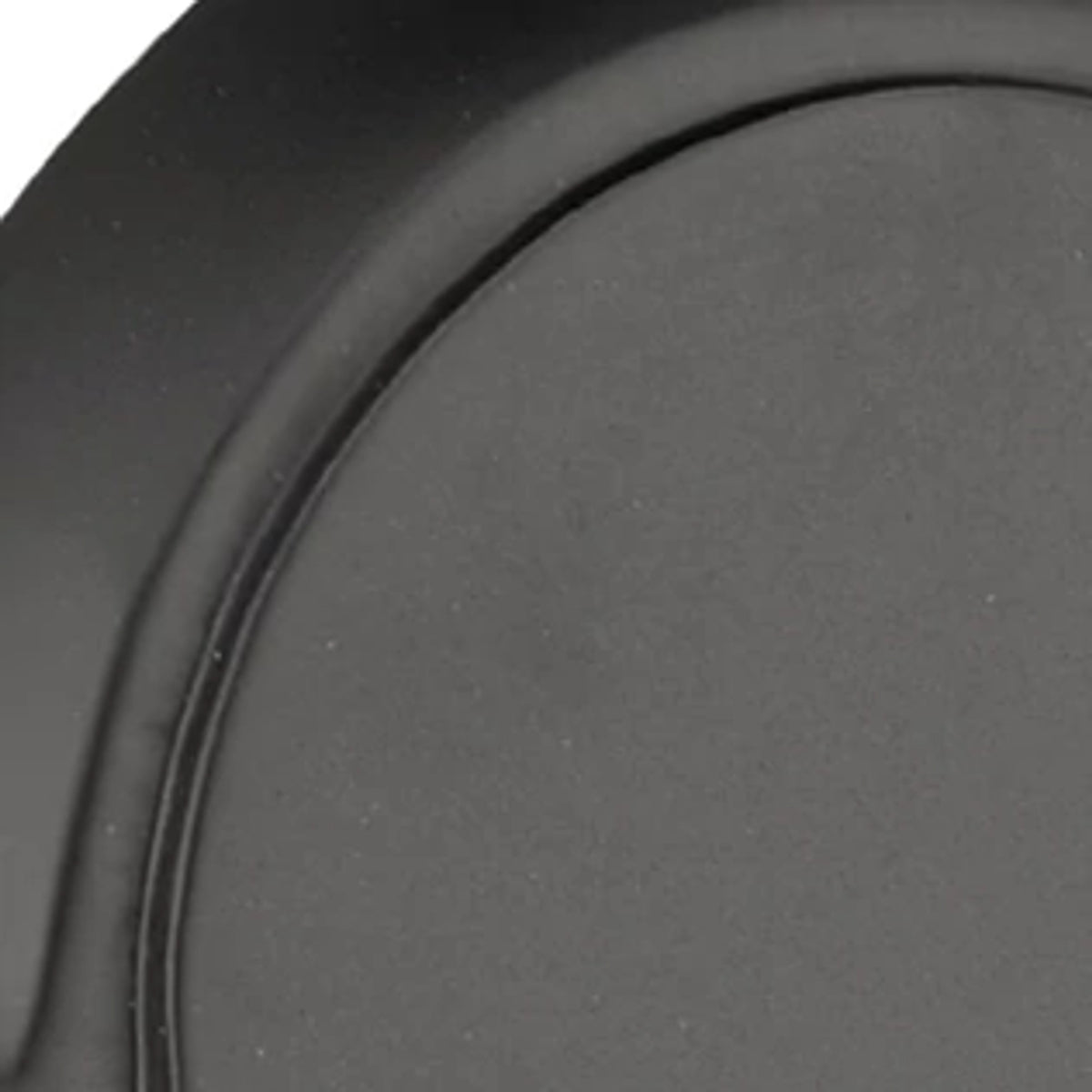

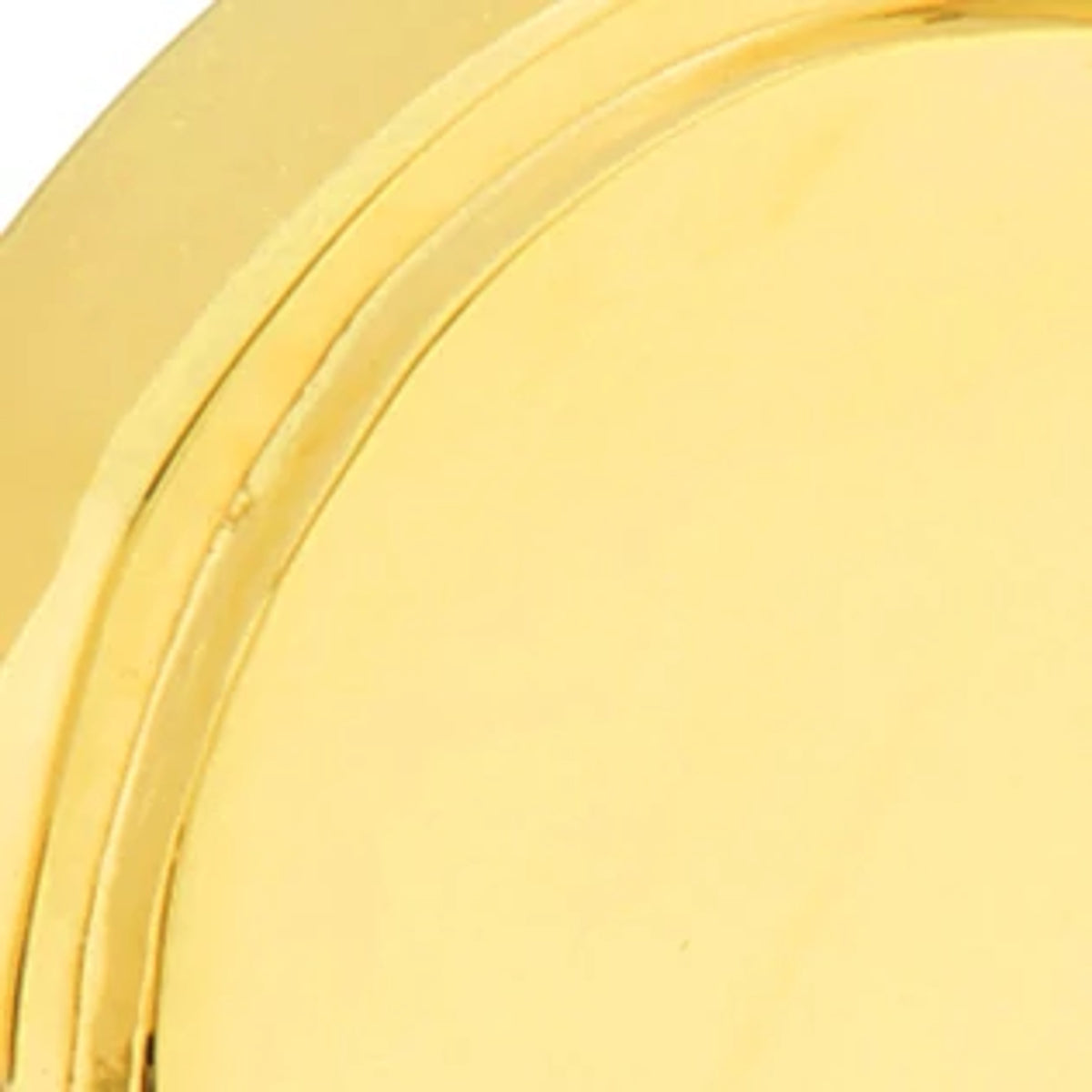

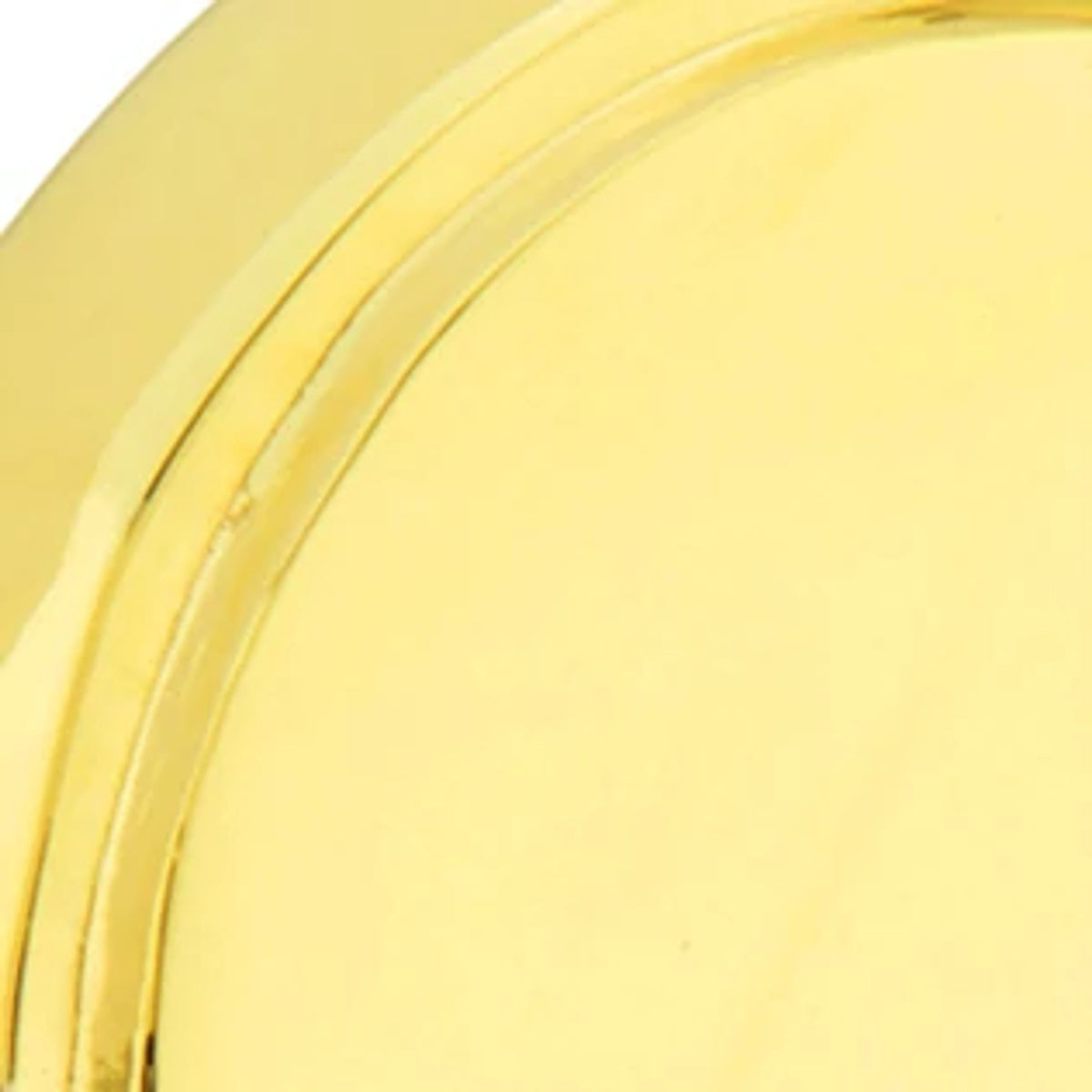

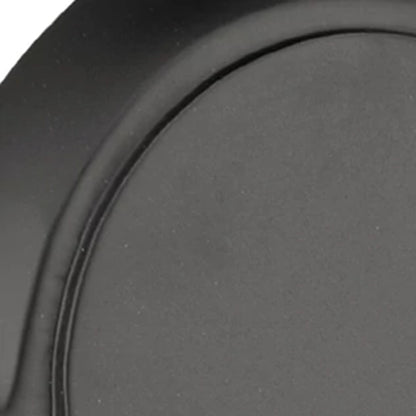

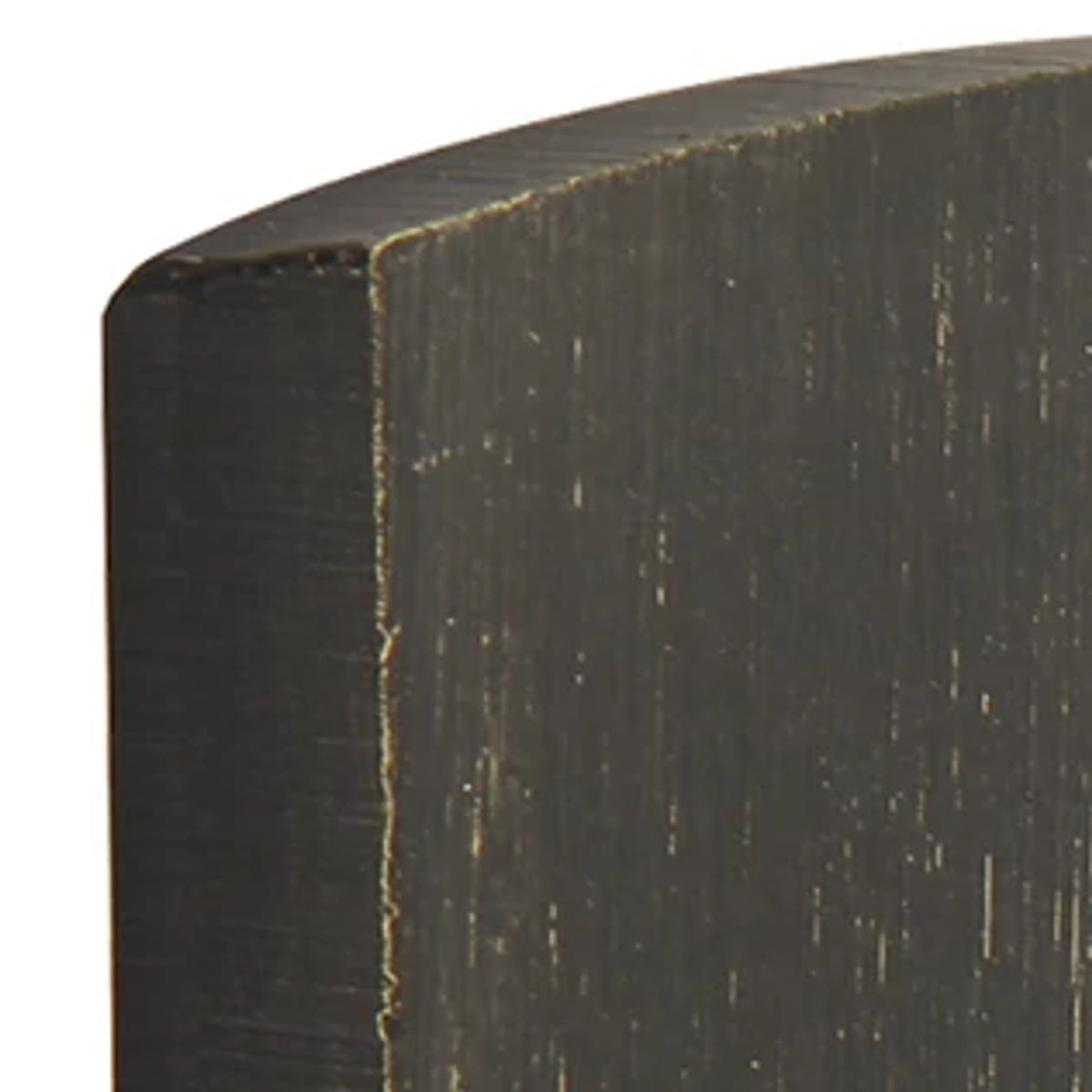

US3, US10B, US15, US19, and US3NL use solid brass trim; MB and TWB use sandcast bronze trim
Single finish only; split finishes are not available
