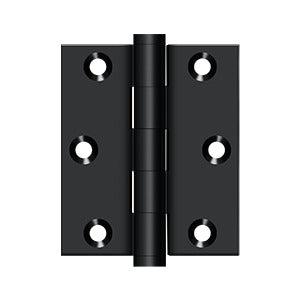

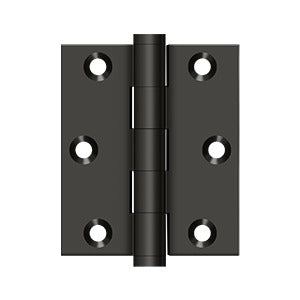

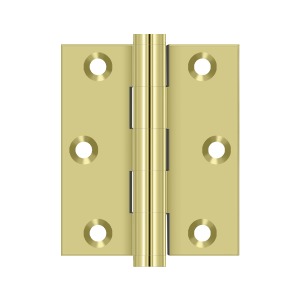

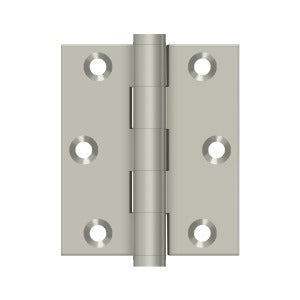

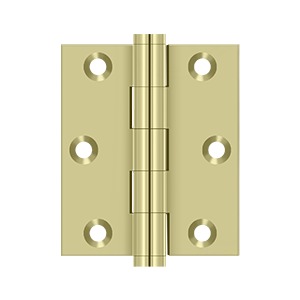

The Deltana DSB3025 is a pair of solid brass hinges for wood screen and storm doors. The 3-inch height and 2-1/2-inch width provide a shorter swing profile than a standard residential door hinge.
Will this fit my door?

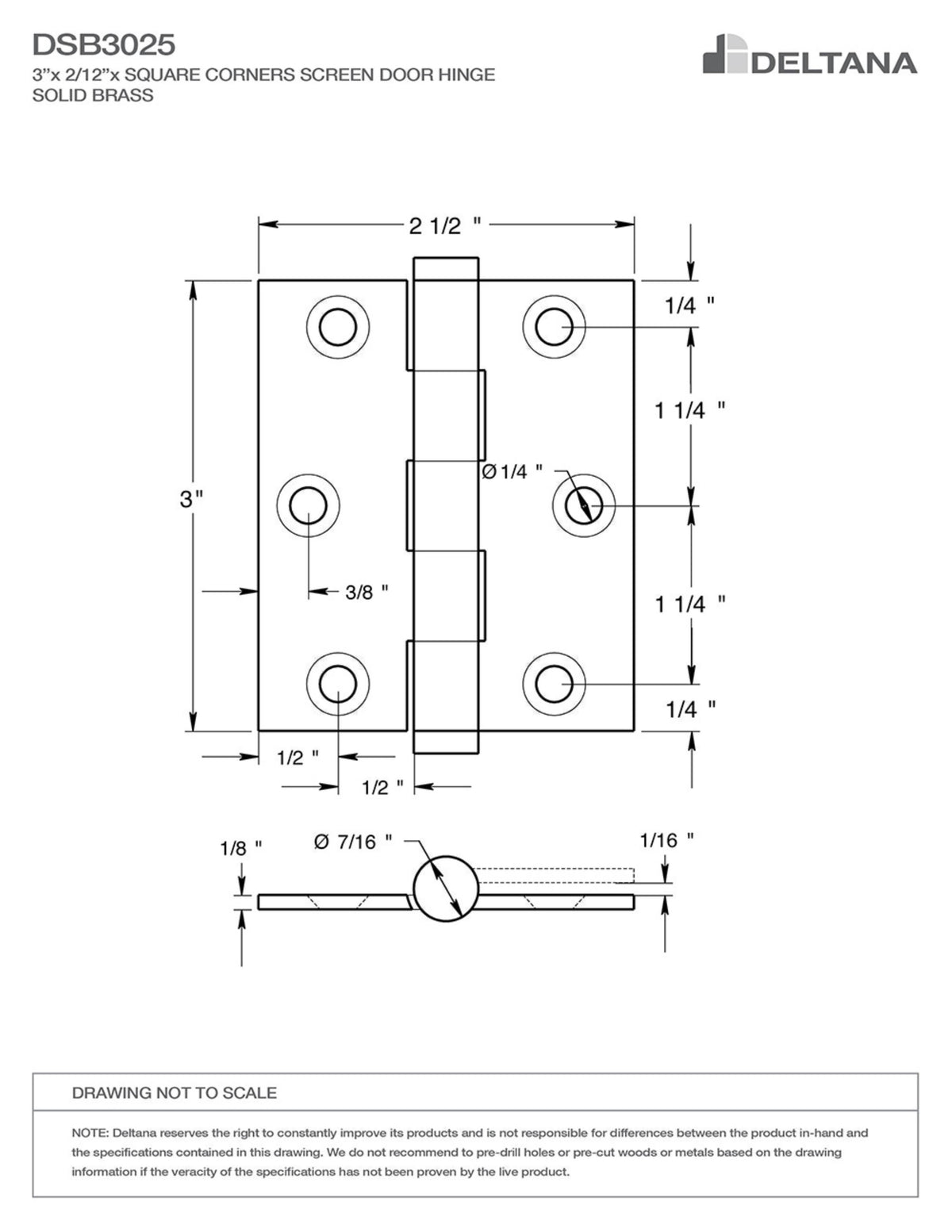

Use this hinge when the existing hinge leaf measures 3 inches high by 2-1/2 inches wide and the six-hole screw pattern matches the dimension drawing. Do not order by appearance alone; compare the measurements and hole locations.
Dimensions and construction
Size: 3" × 2-1/2"
Thickness: 0.097"
Square corners
Solid brass
Includes #10 × 1" wood screws
Sold as one pair
Finial options

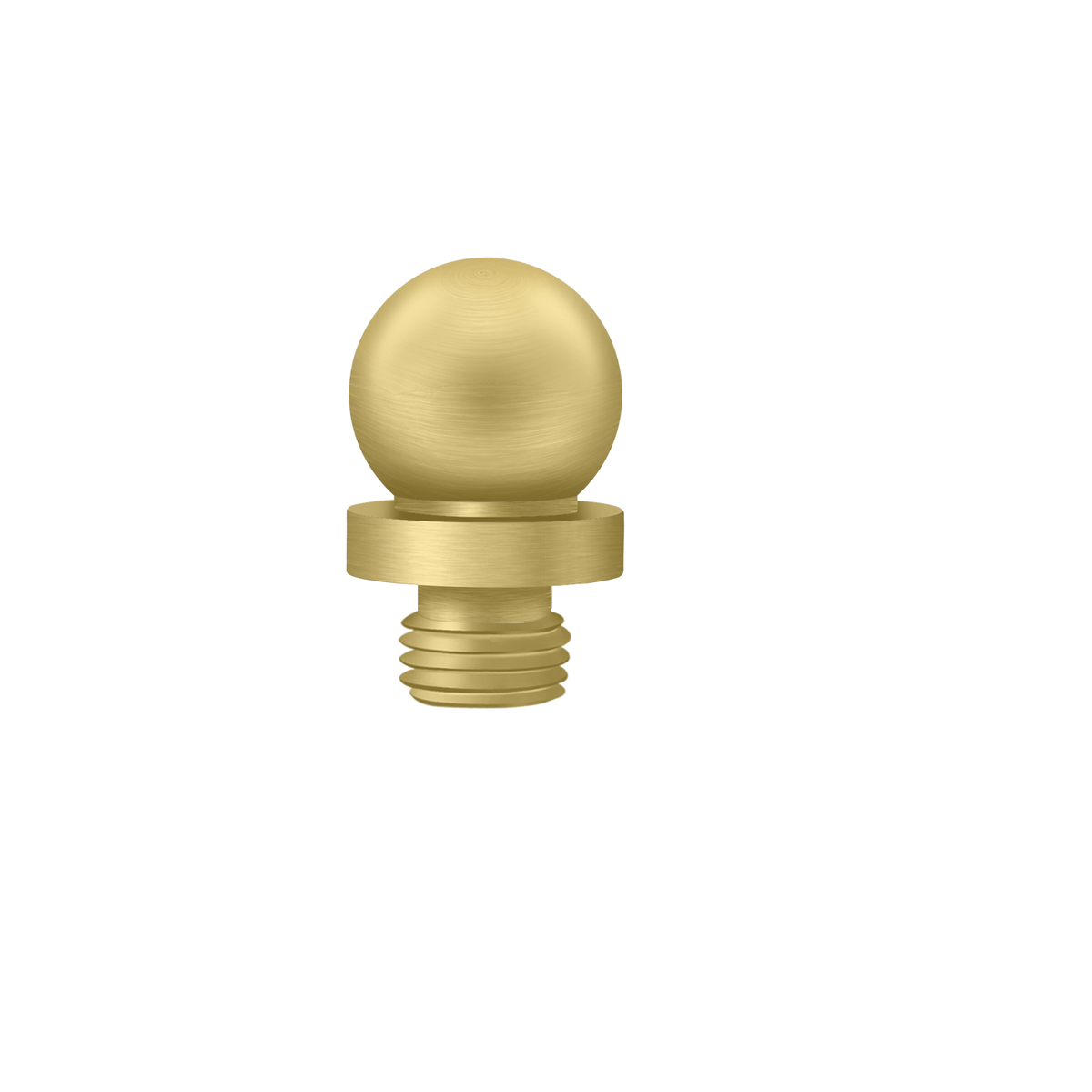

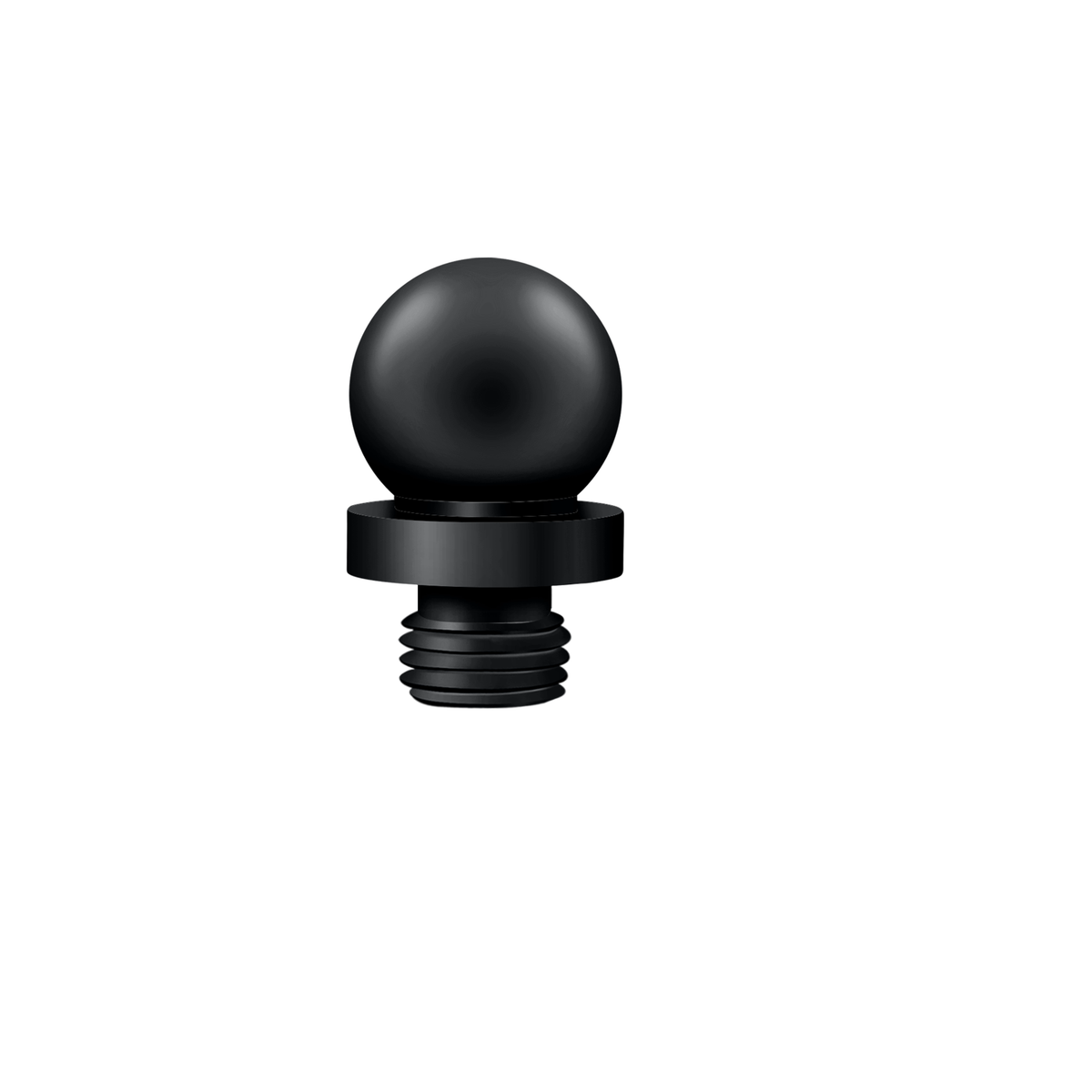

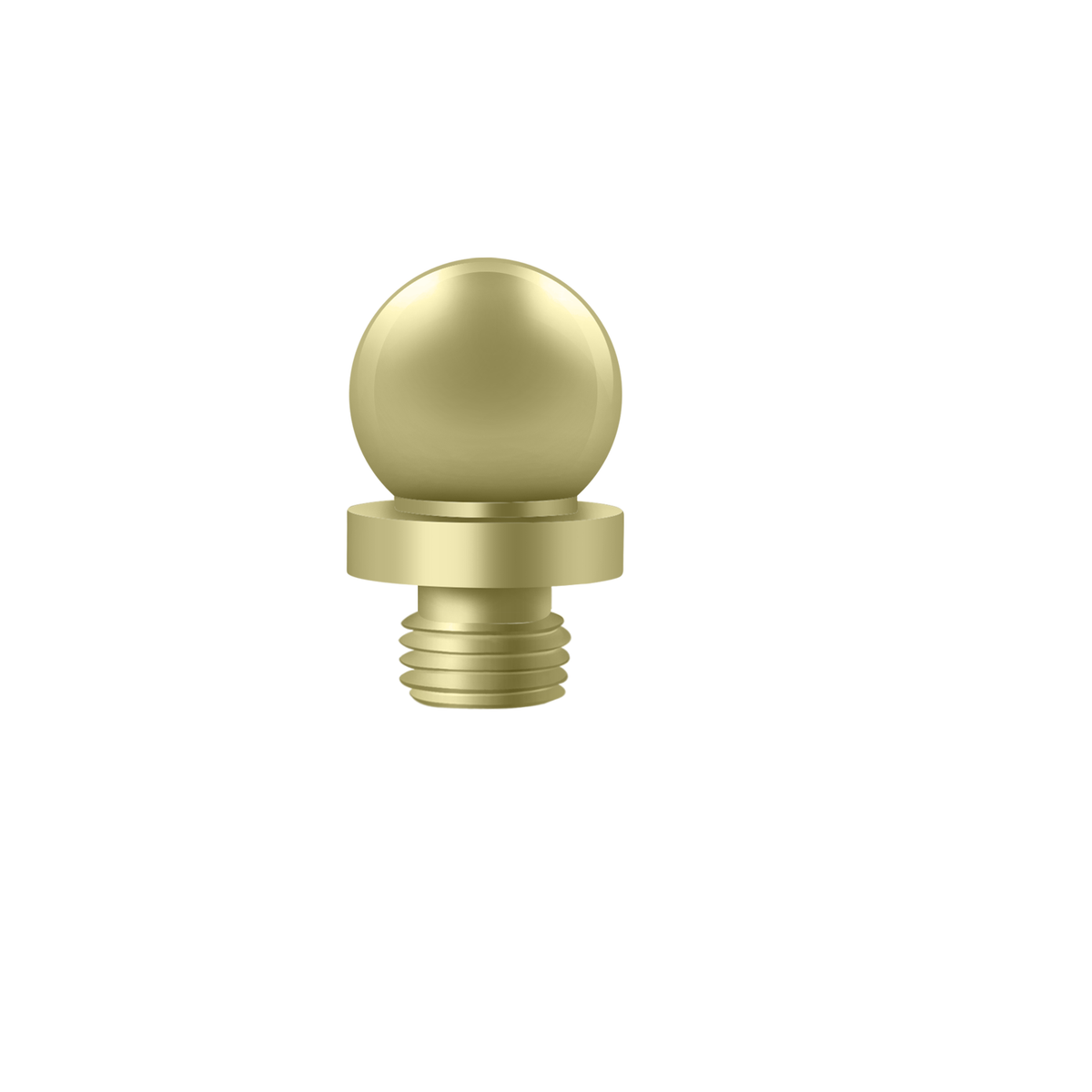

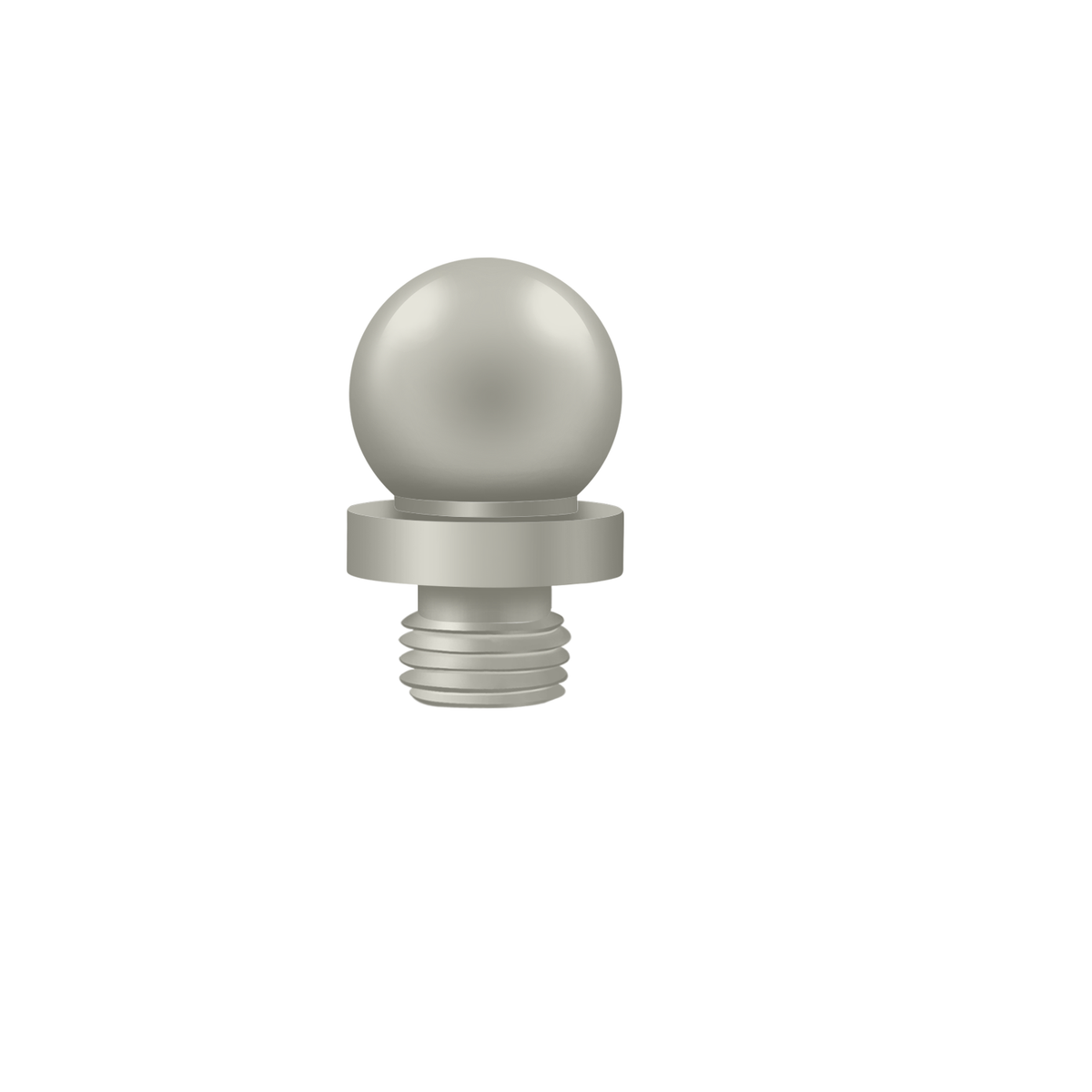

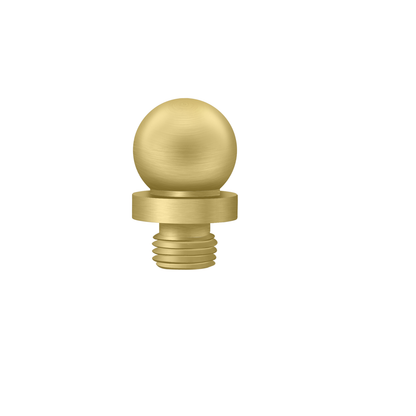

Choose the standard button tips supplied with the hinges or matching Deltana DSBT3 ball tips. The ball-tip option includes four matching finials: one for the top and bottom of each hinge in the pair.
DSBT3 ball tips are solid brass, 7/16 inch in diameter, and use an 8 × 1.25 mm thread.
