Accurate 9167 Entry Mortise Lock Replacement Guide
Share
Print the Accurate Entry Mortise Lock Order Guide (PDF)
Use this guide to identify an Accurate 9167 exterior (entrance) mortise lock and build the full order code before replacing the lock body.

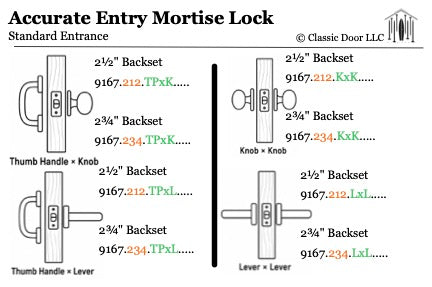

Accurate 9167 Entry Mortise Lock Models
- 2-1/2" backset: 9167.212.TPxK, 9167.212.TPxL, 9167.212.KxK, 9167.212.LxL
- 2-3/4" backset: 9167.234.TPxK, 9167.234.TPxL, 9167.234.KxK, 9167.234.LxL
TP = thumbpiece, K = knob, L = lever (outside x inside).
How the Lock Works
The deadbolt locks with a key from the outside and a thumb turn from the inside. Toggle buttons can keep the outside handle locked. For a lock without the toggle, order the 9169.
How to Build the Accurate Order Code
Fill in each part in this order: lock . backset . trim . spindle . finish . hand . door thickness
- Backset: 2-1/2" (212) or 2-3/4" (234).
- Trim: thumbpiece, knob, or lever, outside x inside.
- Spindle: 7.2 mm or 8 mm.
- Finish: finish name and Accurate finish code.
- Hand: use the Door Handing Chart.
- Door thickness: 1-3/4" or 2-1/4".
Accurate Parts
- Accurate extended lip strike for the 9167 mortise lock
- Replacement mortise cylinder sizing guide
- All mortise locks and parts
Not sure what you have? Send Classic Door your filled-in order code with clear photos of the lock faceplate and both handles, and we will confirm it before you order.
Mortise Lock Replacement Questions
How do I replace an old mortise lock?
Remove the inside and outside handles, slide out the spindle, loosen the cylinder set screw on the door edge and unscrew the cylinder, then remove the two faceplate screws and pull the lock body out. Install the new lock body the same way in reverse.
Are all mortise locks interchangeable?
No. The new lock body must match the old one's backset, size, faceplate, and function, and be the right hand. Matching the model number is the easiest way to be sure it fits the existing hole and trim.
Should I repair or replace my mortise lock?
Often only the key cylinder or a part needs replacing. If the key will not turn, start with the mortise cylinder. If the latch, deadbolt, or handle no longer works, replace the lock body.
What is the difference between a mortise lock and a tubular lock?
A mortise lock is a rectangular box set into a pocket in the door edge, with a tall faceplate. A tubular lock fits in a round hole bored through the door and has a small latch. They are not interchangeable without changing the door.
